25mm 1" NPT 2/2 way aggressive acid alkali medium PTFE solenoid valve

Certification
China WENZHOU NAISAILE SOLENOID VALVE CO.,LTD certification
China WENZHOU NAISAILE SOLENOID VALVE CO.,LTD certification
Customer Reviews
I receive all solenoid control valve is very good and with good packing ,thanks as you said the quality same as !

—— Andrew

very very good pilot operated solenoid valve supplier in China.

—— Ahmed

I'm Online Chat Now

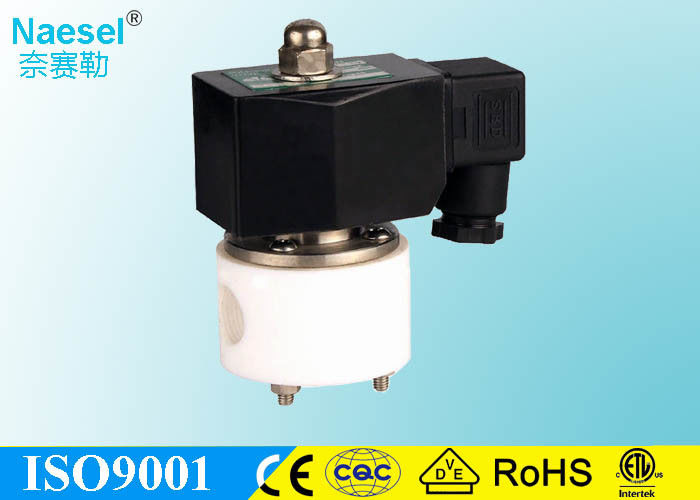

25mm 1" NPT 2/2 way aggressive acid alkali medium PTFE solenoid valve

25mm 1" NPT 2/2 way aggressive acid alkali medium PTFE solenoid valve
25mm 1" NPT 2/2 way aggressive acid alkali medium PTFE solenoid valve 25mm 1" NPT 2/2 way aggressive acid alkali medium PTFE solenoid valve 25mm 1" NPT 2/2 way aggressive acid alkali medium PTFE solenoid valve

Large Image :  25mm 1" NPT 2/2 way aggressive acid alkali medium PTFE solenoid valve

Product Details:

Place of Origin: China
Brand Name: NAESEL
Certification: CE ROHS FDA TUV
Model Number: NLUK21

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: solid paper carton with solid inner box
Delivery Time: 2-7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000PCS Per Month
Detailed Product Description
Body Material: PTFE(teflon) Ambient: Alkali, Acid, Salt Or Any Corrosive Medium
Coil: AC220V, DC24V, AC110V DC12V Pressure: 0.01~0.6Mpa(1.5~87psi)
Structure: Isolation Direct Acting Structure Seal: Corrosive Fluid, Acid Or Alkali
Temperature: -20℃~200℃(-4~392℉) Warranty: 15 Month
Port: 1/8", 1/4", 3/8", 1/2" NPT, G Test: 100% Tested
High Light:

normally open solenoid valve

,

solenoid operated valve

25mm 1" NPT 2/2 way aggressive acid alkali medium PTFE solenoid valve

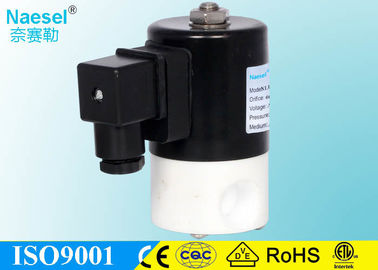

25mm 1" NPT 2/2 way aggressive acid alkali medium PTFE solenoid valve 0

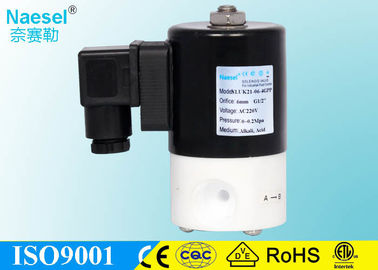

25mm 1" NPT 2/2 way aggressive acid alkali medium PTFE solenoid valve 1

1. How To Order


 Model    Orifice     Port      Thread       Body         Seal         Coil          Voltage

NLUK21    3, 6(mm)         1/8"           G- G             P-PTFE          P-PTFE         Y82B           1-AC220V   2-DC24V

                                         1/4"           R- BSPT        (teflon)                                YD1B           3-AC110V   4-DC12V

                                         3/8"           N-NPT                                                                          5-AC24V

                                            1/2"

NLUK21 normally closed direct acting anti-corrosive anti acid anti alkali solenoid valve.

Example : NLUK2160 4 NPP Y82B1NLUK21 Series, normal closed, 6.0mm orifice, G1/2", PTFE body, PTFE seals 220V.


2.Solenoid Valve Specification

Medium:  corrosive fluid, acid, alkali etc.                       Temperature: PTFE seal:-60℃~200℃(-76℉~392℉)

Orifice:    3.0, 6.0(mm)



Pressure: NLUK21:0.0MPA~0.15MPA (0PSI~21PSI)            Port size:       1/8”, 8/4”, 3/8", 1/2”, 3/4", 1"

Tolerance: ±10%                                                                  Port thread:    BSPT, G, NPT Thread

Voltage:    AC220V DC24V DC12V AC110V AC24V           Coils:              Y82B, YD1B



Material:    Body- PTFE                                                          Character: 1.Isolation Piston structure, longer life time,

                 Seal-PTFE                                                                        new PTFE seals, ambient is completely isolated

                Armature- SS304                                                           from metal parts

                  Plunger- SS430F                                                           2. used in Alkali, Acid, Salts etc.

                  Stop- SS430F

                  Spring- SS304


3.Detailed Information

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material
AC(6VA) DC(5W)
NLUK2130XXX 1/8" 3.0 0.1   0.3Mpa





PTFE





PTFE


NLUk21601XXX 1/4" 6.0 0.28 0.0Mpa 0.15Mpa
NLUK4602XXX 3/8" 6.0 0.28 0.0Mpa 0.15Mpa
NLUK4603XXX 1/2" 6.0 0.28 0.0Mpa 0.15Mpa
NLUK4604XXX 3/4" 6.0 0.28 0.0Mpa 0.15Mpa
NLUK4603XXX 1" 6.0 0.28 0.0Mpa 0.15Mpa





















4.Diemsion


25mm 1" NPT 2/2 way aggressive acid alkali medium PTFE solenoid valve 2










5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

25mm 1" NPT 2/2 way aggressive acid alkali medium PTFE solenoid valve 3

25mm 1" NPT 2/2 way aggressive acid alkali medium PTFE solenoid valve 4


6. More Product Photo and Certifications

25mm 1" NPT 2/2 way aggressive acid alkali medium PTFE solenoid valve 5

25mm 1" NPT 2/2 way aggressive acid alkali medium PTFE solenoid valve 6


7. Why US?

Our core advantages to pursue Your Success.



1.Reliable Quality (We are OEM supplier of ASCO and Parker)



2.Over 20 years solenoid valve design and customize experience.



3.Mark Service(both Product and packing wiht your design and logo)



4.Related Supply Service, including Festo, SMC, , Airtac, Shako.



5.Good English communication



6.Opening Mind to growing with clients for different products.



(please continue reading to find out more detail)

25mm 1" NPT 2/2 way aggressive acid alkali medium PTFE solenoid valve 7
