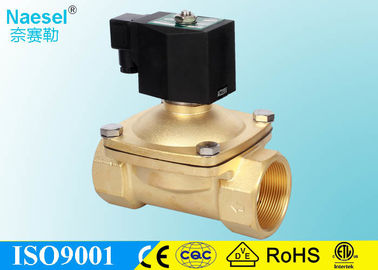

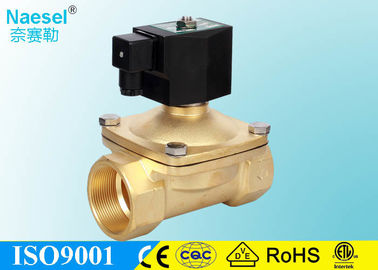

2 Inch Electric Diaphragm Solenoid Valve Normal Closed / Open 145 PSI FKM Viton

2 Inch Electric Diaphragm Solenoid Valve Normal Closed / Open 145 PSI FKM Viton
2 Inch Electric Diaphragm Solenoid Valve Normal Closed / Open 145 PSI FKM Viton 2 Inch Electric Diaphragm Solenoid Valve Normal Closed / Open 145 PSI FKM Viton

Large Image :  2 Inch Electric Diaphragm Solenoid Valve Normal Closed / Open 145 PSI FKM Viton

Product Details:

Place of Origin: China
Brand Name: Naesel
Certification: CE CQC TUV ROHS VDE Intertek ETL
Model Number: 2W11, 2W21, 2W31, 2W41, 2W12

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: Negotiation
Packaging Details: carton with solid inner box as below photo
Delivery Time: 1-3 days
Payment Terms: Western Union, MoneyGram, L/C, T/T, Paypal
Supply Ability: 10000PCS Per Month
Detailed Product Description
Material: Brass, Stainless Steel 304,430, FKM, Temperature: -30℃~150℃(-22℉~302℉)
Port: 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2" NPT BSPP Thread: NPT, G, BSPP Thread
Orifice: 12, 15, 20, 25, 32, 40, 50(mm) Voltage: DC:,12V 24V, AC:24V, 120V, 240V/60HZ, 110V,220V/50HZ
Seal Material: FKM EPDM NBR Fluid: Air,gas, Water,oil, Etc.
Pressure: 0.0MPA~1.0MPA (0PSI~145PSI) Charactoristics: 0 Psi Acted With Direct Lifting Diaphragm
Motion Type: Direct Lifting Diaphragm Valve Type: Normally Closed
Connection Type: Thread Or Flange Application: For General Low Pressure System
High Light:

low power solenoid valve

,

pilot operated diaphragm valve

2 Inch Electric Water Valve Normal Closed Open 145 PSI FKM Viton

2 Inch Electric Water Valve Normal Closed Open 145 PSI FKM Viton

2 Inch Electric Diaphragm Solenoid Valve Normal Closed / Open 145 PSI FKM Viton 0

1. How To Order


 Model      Orifice      Thread       Body           Seal           Coil            Voltage

  2W11        12, 15, 20,           G- G              B-Brass              N-NBR             Y32B          1-AC220V   2-DC24V

  2W21         25, 32, 40,             N- NPT         S-SS304/316      E-EPDM           Y42B          3-AC110V   4-DC12V

  2W31        50(mm)                                                                  V-FRM/Viton    Y52B          5-AC24V

  2W41                                                                                                              S51B

  2W12                                                                                                                S91B

                                                                                                         SD01B



2W11 2 Inch Electric Water Valve Normal Closed Open 145 PSI FKM Viton

2W21 2 port 24 Volt Solenoid Valve Water Normal Closed 145 PSI NBR Seal for Low Pressure System

2W31 2 way solenoid valve direct lifting diaphragm 0.0~1.0Mpa, S91B/SD01B DIN coil 36W DC

2W41 2 port solenoid valve direct lifting diaphragm 0.0~1.0Mpa, S91B/SD01B DIN coil 6W DC low consumption

2W12 2 port normal opened solenoid valve direct lifting diaphragm 0.0~1.0Mpa, Y32B/Y42B iron shell coil

Example : 2W11 50NBV S11H2normal closed, 50mm orifice, NPT2", brass body, Viton seals, DC24V.


2. Solenoid Valve Specification

Medium:  Air, gas, Water, oil etc.                               Temperature: PTFE seal:-30℃~392℃(14℉~176℉)

Orifice:    12, 15, 20, 25(mm)                                                          EPDM seal:-30℃~120℃(-22℉~248℉)

                                                                                                           Viton seal:-30℃~150℃(-22℉~302℉)

                                                                                                                     PTFE seal:-60℃~200℃(-76℉~392℉)



Pressure: 2W:0.0MPA~1.0MPA (0PSI~145PSI)                 Port thread:  NPT, G Thread

                                                                        Port size:      3/8”, 1/2”, 1", 1-1/4", 1-1/2", 2"



Voltage:     DC:12V, 24V,                                               Coils:            Y32B, 40VA(AC),18W(DC),IP65,100%ED

                 AC:24V, 110V, 120V, 220V, 240V                                    Y42B, 50VA(AC),20W(DC),IP65,100%ED

Tolerance: ±10%                                                                   Y52B, 220VA(AC),18W(DC),IP65,100%ED

                                                                                                                 S51B, 30VA(AC),24W(DC),IP65,100%ED

                                                                                                                                    S91B, 22VA(AC),17W(DC),IP65,100%ED

                                                                                                                                    SD01B, 28VA(AC),36W(DC),IP65,100%ED



Material:    Body- Brass, stainless steel, Aluminum,            Character:  1. Direct Lifting diaphragm

                 Seal- VITION, NBR, EPDM, PTFE                                   2. 0 Psi started

               Armature- SS304                                                              3. low pressure system usage

                 Plunger- SS430F                                                               4. air, gas, water, oil fluid.

                 Stop- SS430F

                 Spring- SS304

                 Shading Rings- Copper

                 Special Coils: Latching coil DC6~24V


3. Detailed Information

2W11 2 Inch Electric Water Valve Normal Closed Open 145 PSI FKM Viton

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(40VA) DC(18W)
2W1112XXX 3/8" 12 4.5 0.0Mpa 1.0Mpa 1.0Mpa

Brass

NBR

EPDM

Viton

(FKM)

Y32B
2W1115XXX 1/2" 15 4.5 0.0Mpa 1.0Mpa 1.0Mpa Y32B
2W1120XXX 3/4" 20 9.3 0.0Mpa 1.0Mpa 1.0Mpa Y32B
2W1125XXX 1" 25 12 0.0Mpa 1.0Mpa 1.0Mpa Y32B
  AC(50VA) DC(20W)
2W1132XXX 1-1/4" 32 24 0.0Mpa 1.0Mpa 1.0Mpa Y42B
2W1140XXX 1-1/2" 40 29 0.0Mpa 1.0Mpa 1.0Mpa Y42B
2W1150XXX 2" 50 48 0.0Mpa 1.0Mpa 1.0Mpa Y42B



























2W21 2 port pipeline solenoid valve direct lifting diaphragm 0.0~1.0Mpa, S51B/SD01B DIN coil 24W DV

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(30VA) DC(24W)
2W2112XXX 3/8" 12 4.5 0.0Mpa 1.0Mpa 1.0Mpa    Brass

NBR

EPDM

Viton

(FKM)

S51B
2W2115XXX 1/2" 15 4.5 0.0Mpa 1.0Mpa 1.0Mpa S51B
2W2120XXX 3/4" 20 9.3 0.0Mpa 1.0Mpa 1.0Mpa S51B
2W2125XXX 1" 25 12 0.0Mpa 1.0Mpa 1.0Mpa S51B
  AC(28VA) DC(36W)
2W2132XXX 1-1/4" 32 24 0.0Mpa 1.0Mpa 1.0Mpa SD01B
2W2140XXX 1-1/2" 40 29 0.0Mpa 1.0Mpa 1.0Mpa SD01B
2W2150XXX 2" 50 48 0.0Mpa 1.0Mpa 1.0Mpa SD01B



























2W31 2 way solenoid valve direct lifting diaphragm 0.0~1.0Mpa, S91B/SD01B DIN coil 36W DC

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(28VA) DC(36W)
2W3132XXX 1-1/4" 32 24 0.0Mpa 1.0Mpa 1.0Mpa Brass

NBR

EPDM

Viton

(FKM)

SD01B
2W3140XXX 1-1/2" 40 29 0.0Mpa 1.0Mpa 1.0Mpa SD01B
2W3150XXX 2" 50 48 0.0Mpa 1.0Mpa 1.0Mpa SD01B

















2W41 2 port pipeline solenoid valve direct lifting diaphragm 0.0~1.0Mpa, S91B/Y52B coil

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(30VA) DC(24W)
2W2112XXX 3/8" 12 4.5 0.0Mpa 1.0Mpa 1.0Mpa    Brass

NBR

EPDM

Viton

(FKM)

Y52B
2W2115XXX 1/2" 15 4.5 0.0Mpa 1.0Mpa 1.0Mpa Y52B
2W2120XXX 3/4" 20 9.3 0.0Mpa 1.0Mpa 1.0Mpa Y52B
2W2125XXX 1" 25 12 0.0Mpa 1.0Mpa 1.0Mpa Y52B

















2W12 2 port normal open solenoid valve direct lifting diaphragm 0.0~1.0Mpa, S51B/Y42B wire lead coil

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(30VA) DC(24W)
2W1212XXX 3/8" 12 4.5 0.0Mpa 1.0Mpa 1.0Mpa Brass

NBR

EPDM

Viton

(FKM)

S51B
2W1215XXX 1/2" 15 4.5 0.0Mpa 1.0Mpa 1.0Mpa S51B
2W1220XXX 3/4" 20 9.3 0.0Mpa 1.0Mpa 1.0Mpa S51B
2W1225XXX 1" 25 12 0.0Mpa 1.0Mpa 1.0Mpa S51B
  AC(50VA) DC(20W)
2W1232XXX 1-1/4" 32 24 0.0Mpa 1.0Mpa 1.0Mpa Y42B
2W1240XXX 1-1/2" 40 29 0.0Mpa 1.0Mpa 1.0Mpa Y42B
2W1250XXX 2" 50 48 0.0Mpa 1.0Mpa 1.0Mpa Y42B






























4. Diemsion

2 Inch Electric Diaphragm Solenoid Valve Normal Closed / Open 145 PSI FKM Viton 1


5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

2 Inch Electric Diaphragm Solenoid Valve Normal Closed / Open 145 PSI FKM Viton 2

2 Inch Electric Diaphragm Solenoid Valve Normal Closed / Open 145 PSI FKM Viton 3


6. More Product Photo and Certifications

2 Inch Electric Diaphragm Solenoid Valve Normal Closed / Open 145 PSI FKM Viton 4

2 Inch Electric Diaphragm Solenoid Valve Normal Closed / Open 145 PSI FKM Viton 5


7. Why US?

Our core advantages to pursue Your Success.



1.Reliable Quality (We are OEM supplier of ASCO and Parker)



2.Over 20 years solenoid valve design and customize experience.



3.Mark Service(both Product and packing wiht your design and logo)



4.Related Supply Service, including Festo, SMC, , Airtac, Shako.



5.Good English communication



6.Opening Mind to growing with clients for different products.



(please continue reading to find out more detail)
