12mm Orifice EMC Solenoid Valve , Brass / Stainless Steel Solenoid Pressure Relief Valve

EMC SLP08 Solenoid Valve Better Quality than SLP08-030E2S1V Viton Seal​YCD51 EMC SLP08 changeable solenoid valve better quality than SLP08-030E2S1E

1. How To Order

 Model      Orifice      Thread       Body            Seal           Coil        Voltage

  NLW51            12,                G- G                 B-Brass              N-NBR             S11B          1-AC220V   2-DC24V

                                               N- NPT                                        E-EPDM          S91B           3-AC110V   4-DC12V

                                                                                                   V-FRM/Viton    0543            5-AC24V     6-DC36V

                                                                                                                                               7-DC6V

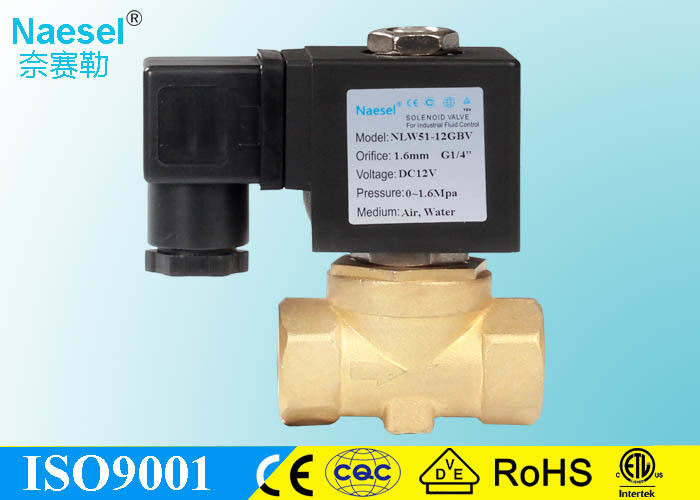

NLW51 1/4 Pilot diaphragm solenoid valve normal closed with S11B coil

Example : NLW51 12GBN S91B1: normal closed, 15mm orifice, G1/4", brass body, Viton seals, AC220V.

2. Solenoid Valve Specification

Medium:  Air, water, steam, oil, etc.                            Temperature: NBR seal:-10℃~80℃(14℉~176℉)

Orifice:    12(mm)                                                                         EPDM seal:-30℃~120℃(-22℉~248℉)

                                                                                                           Viton seal:-30℃~150℃(-22℉~302℉)

Pressure: NLW51:0.01MPA~1.0MPA (1.45PSI~145PSI)     Port thread:  NPT, G Thread

                                                                         Port size:       1/4”, 3/8”, 1/2”

Voltage:     DC:6VDC,12VDC, 24VDC, 36VDC,                    Coils:            S11B,24VA(AC),15W(DC),IP65,100%ED

                 AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC                   S91B,22VA(AC),17W(DC),IP65,100%ED

Tolerance: ±10%                                                                       SA11B, 9VA(AC),6W(DC),IP65,100%ED

Material:    Body- Brass, stainless steel, Aluminum,            Character:     1. Pilot diaphragm structure,

                 Seal- VITION, NBR, EPDM, PTFE                                     2. Low consumption

               Armature- SS304                                                                 3. longterm continuous working

                  Plunger- SS430F                                                                4. 1 million service lifespan

                  Stop- SS430F

                  Spring- SS304

                  Shading Rings- Copper

                  Special Coils: Latching coil DC6~24V

3. Detailed Information

NLW51 Pilot diaphragm solenoid valve normal closed with S11B coil

4. Diemsion

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

6. More Product Photo and Certifications

7. Why US?

Our core advantages to pursue Your Success.

1.Reliable Quality (We are OEM supplier of ASCO and Parker)

2.Over 20 years solenoid valve design and customize experience.

3.Mark Service(both Product and packing wiht your design and logo)

4.Related Supply Service, including Festo, SMC, , Airtac, Shako.

5.Good English communication

6.Opening Mind to growing with clients for different products.

(please continue reading to find out more detail)

NLW series solenoid valves support high working pressure 16bar,which is much

higher than normal 8bar. From 1/8” to 6”, this seriessolenoid valves now has a

complete range of sizes for your options,including brass valve and stainless steel

valve, both of SS valve and brass valve can be normal close valve and normal open

valve, with NBR seal, EPDM seal and VITON seal, applicable for many kind of

medium like air, gas, water, hot water, liquid, etc. According to different industry

demand, the NLW series solenoid valve provides 10 different voltage coils
for your use. Very popular around the world wide fluid control system,
especially the low power solenoid valve with only 2~8 Watt, which gives
the only solution for big overheat problem of solenoid valves at much
lower temperature, longer life cycle, faster response, more safety use.
